Home > Products > LCR/Impedance Analyzer > IMPEDANCE ANALYZER IM3570

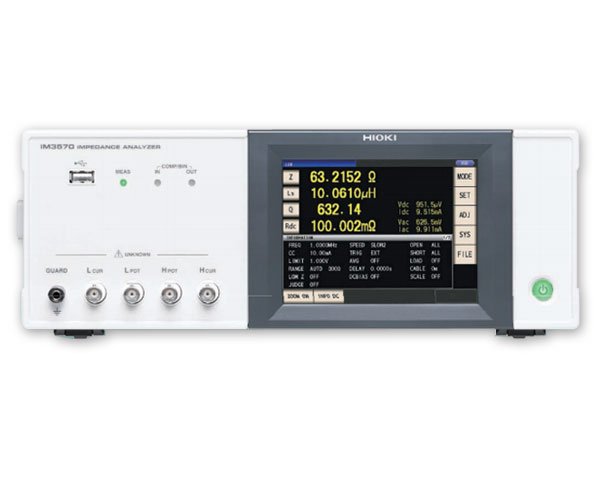

IMPEDANCE ANALYZER IM3570

  • |Z|, L, C, R testing
  • Testing source frequency: 4 Hz to 5 MHz
  • Measuring time: 0.5 msec
  • Measure LCR and conduct frequency sweeps simultaneously
GET A QUOTE
CATALOG

OVERVIEW

Single Device Solution for High Speed Testing and Frequency Sweeping

  • LCR measurement, DCR measurement, sweep measurement, continuous measurement and high-speed testing achieved with one instrument
  • High-speed testing, achieving maximum speeds of 1.5ms (1 kHz) and 0.5ms (100kHz) in LCR mode
  • High-accuracy measurements, basic accuracy of Z parameter: ± 0.08%
  • Perfect impedance analyzer for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)
  • Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode
