Home > Products > Oscilloscopes > WaveMaster 8 Zi-A > Teledyne LeCroy WAVEMASTER 8 Zi-A OSCILLOSCOPES

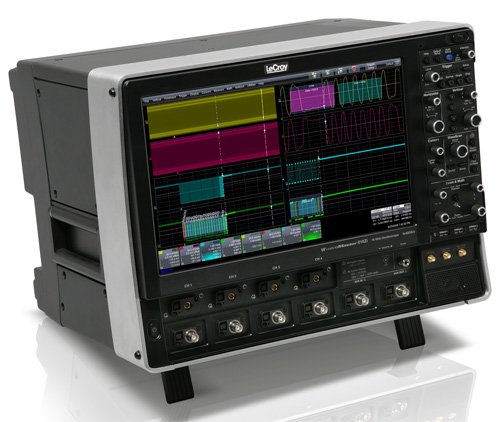

Teledyne LeCroy WAVEMASTER 8 Zi-A OSCILLOSCOPES

  • 4 GHz - 30 GHz Bandwidth
  • 20 Mpts - 768 Mpts Standard Memory
  • 120 GS/s Max Sampling Rate
  • 8-bit Resolution (up to 11 bits with enhanced resolution (ERES))
GET A QUOTE
CATALOG

OVERVIEW

45 GHz Real-Time Bandwidth

Teledyne LeCroy has again broken bandwidth barriers by utilizing widely adopted and proven SiGe processes, custom 2nd generation ASIC designs, and 6th generation Digital Bandwidth Interleave (DBI) technology to achieve unprecedented real-time oscilloscope performance:

  • 45 GHz
  • 120 GS/s
  • 768 Mpts/Ch Analysis Memory

20 GHz/4ch Model

Four channel performance at 20 GHz is pristine with exceptional rise time, overshoot, total and random jitter noise floor, and electrical noise performance.

Teledyne LeCroy — The Analysis Memory Leader

Teledyne LeCroy has found a way to make long acquisition memory seamless and pain free to use. The WaveMaster 8 Zi-A Series' proprietary X-Stream II architecture supports capturing, zooming, measuring and analyzing multiple waveforms at up to 768 Mpts deep. WaveMaster 8 Zi-A's proprietary architecture design is augmented with an Intel® Core™ 2 Quad processor (12 GHz effective clock rate), high-speed serial data buses, Windows 7 64-bit OS and 8 GB of RAM. What you experience is processing speed 10-100x faster compared to other oscilloscopes in this class.

Highest Stability Timebase and Lowest Jitter Noise Floor

An exceptionally accurate and stable time base is incorporated for the best possible jitter measurement accuracy jitter noise floor is as low as 125 fsrms. Teledyne LeCroy provides highly stable measurements at full (768 Mpts) record lengths, simplifying debug of low frequency events.

Freedom from Probing Limitations

High bandwidth differential probes (up to 25 GHz), single-ended active probes, current probes, high-voltage, and mixed signals all connect to the WaveMaster 8 Zi-A oscilloscope and give you a total system view. All WaveMaster 8 Zi-A oscilloscopes contain selectable 50 Ohm and 1 MOhm input capability and can be used with any Teledyne LeCroy probe - passive or active - without requiring external adapters or power supplies.
