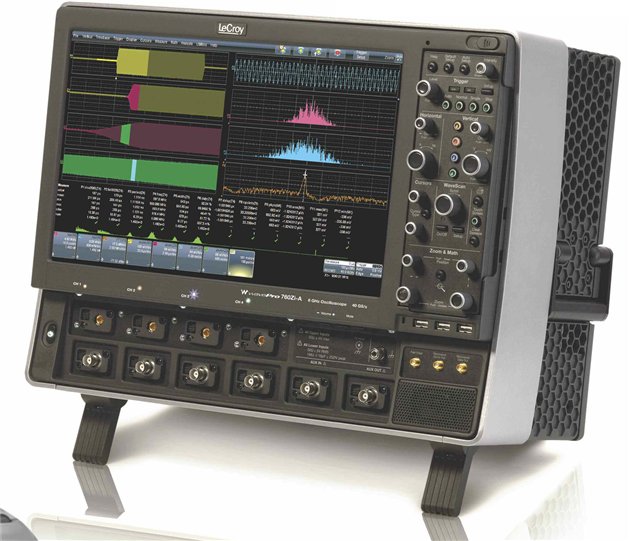

Teledyne LeCroy WAVEPRO 7 Zi-A OSCILLOSCOPES

  • 1.5 GHz - 6 GHz Bandwidth
  • 20 Mpts - 256 Mpts Standard Memory
  • 40 GS/s Max Sampling Rate
  • 8-bit Vertical Resolution (up to 11 bits with enhanced resolution (ERES))
GET A QUOTE
CATALOG

OVERVIEW

Freedom from Limitations

WavePro 7 Zi-A excels in the way it offers general purpose utility never before seen in oscilloscopes from 1.5 to 6 GHz. All WavePro 7 Zi-A oscilloscopes contain selectable 50 Ω and 1 MΩ input capability. The 4 and 6 GHz models include both ProBus and ProLink input types which means eight probes can be attached and then multiplexed from the front panel or by remote control. The result— it's easy to hook up a passive probe even on 4 or 6 GHz models—no more frustration and hassle of trying to find a 1 MΩ input adapter. Plus, any existing investment in Teledyne LeCroy probes, such as current probes, single-ended or differential active probes, or high voltage probes, is fully leveraged. Perfect.

More Triggers Isolate More Problems More Effectively

A powerful combination of high bandwidth Edge and 10 different SMART triggers allow you to isolate the problem quickly and begin to focus on the cause. Most SMART triggers allow triggering on pulse widths or features as small as 200 ps. A high-speed serial trigger enables triggering on up to 2.7 Gb/s serial patterns of up to 80-bits in length. Built-in hardware clock recovery is also included.

TriggerScan™

TriggerScan uses high-speed hardware triggering capability with persistence displays to capture only the signals of interest and provide answers up to 100X faster that other methods. Traditional fast display update modes work best on frequent events occurring on slow edge rates while TriggerScan excels in finding infrequent events on fast edge rates.

Optimized for Long Memory

By using variable waveform segment lengths to improve the CPU cache memory efficiency the WavePro 7 Zi is designed for the fastest processing of long waveform records. The result—10-20 times faster processing compared to other oscilloscopes.
